Request callbackProduct code: B412T-630

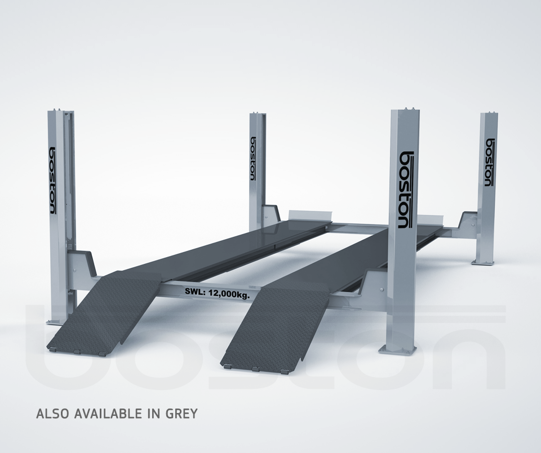

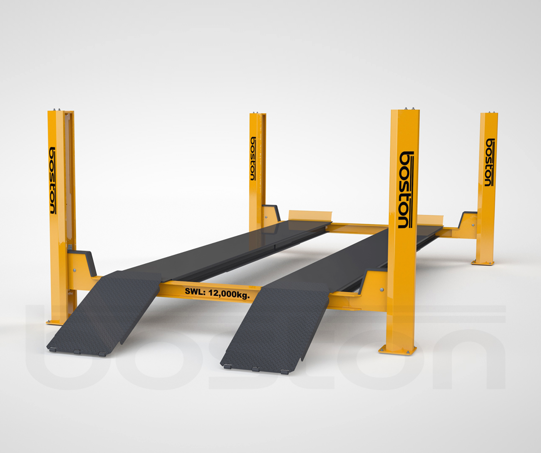

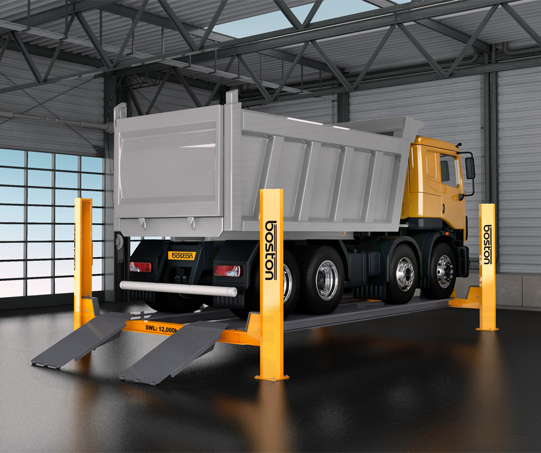

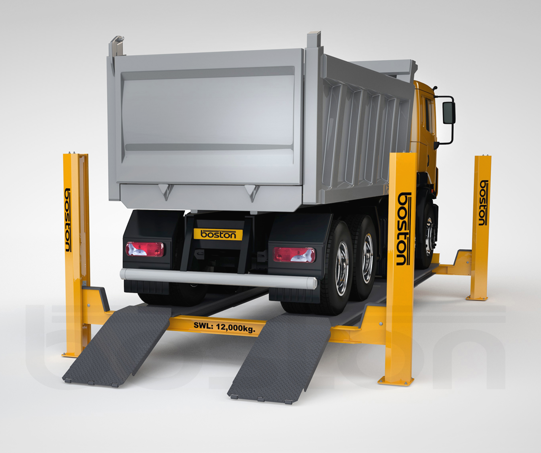

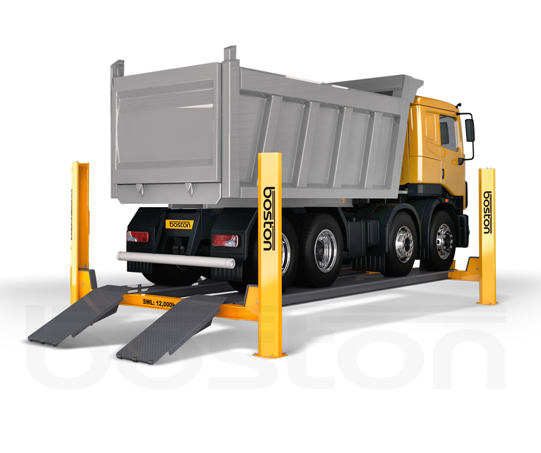

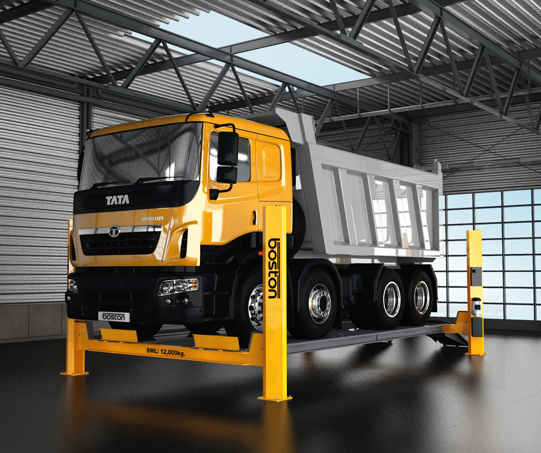

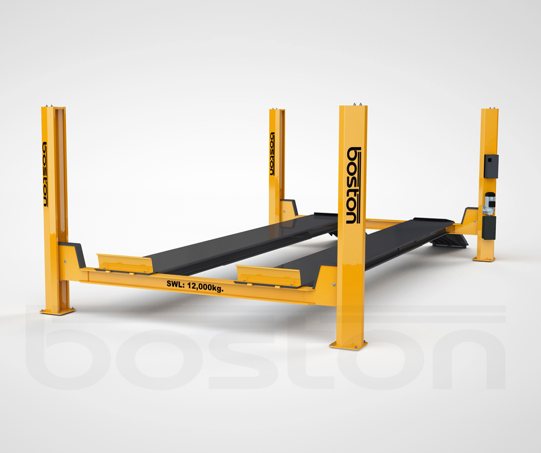

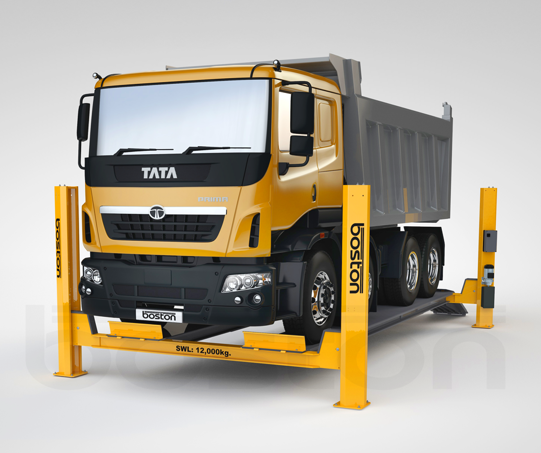

12T, 6.3m Commercial Vehicle Four Post Lift
12T, 6.3m Commercial Vehicle Four Post Lift
Introducing our new commercial vehicle four-post lift, the B412T-630.
Engineered to meet the demands of today’s commercial vehicle and truck service environments, our latest four-post lift delivers exceptional strength, versatility, and performance. With a robust lifting capacity of 12,000 kg and extended 6.3m platforms, this heavy-duty solution is perfectly suited to accommodate a wide range of commercial vehicles, including trucks, vans, and other large fleet vehicles. Designed for reliability and efficiency, it’s the ideal choice for workshops requiring premium lifting power with maximum stability.
- Reinforced drive-up ramps / drive-over plates
- Drive-through or reverse-off configurations
- Heavy duty, high quality platforms & reinforced substructure
- High quality safety ladder-racks on all posts
- Columns feature an innovative design with no longitudinal welds, enhancing structural integrity
- Cross beam pulley covers
- Equipped with a patented safety system that eliminates the need for an air supply; electro-hydraulic operation utilising cables, pulleys, and pins
- Quiet operation - no noisy spindles or gearboxes
- Electro-hydraulic lifting powered by a specially designed double-piston cylinder
- Safety system designed to detect and respond to cable breakage or the presence of obstacles
- 24V controls featuring "dead man" operation, separate up/down buttons and a lockable main switch
- Fully protected pulley areas to ensure operator safety
- Front and rear anti-slip safety features for vehicle positioning
- Built-in height limitation system
- Globally patented lifting and safety system, ensuring unparalleled reliability and innovation
- Range of optional extras (See Tech Specs)
Design
Boston products & software are designed in-house by our team of experts. All garage equipment is manufactured in the UK & Europe to the highest standards.
Expertise
With over 35 years of experience & more than 5,000 garages using our products, we have the knowledge & expertise to advise you on all your workshop needs.
Service
Network of approved distributors, authorised calibration technicians, GEA vehicle lift engineers, & product software with built-in remote assistance.
| Specifications: | |
|---|---|
| Power Supply | 3PH / 415VAC - 3kW |
| Operation | Electro-hydraulic |
| Control | Control panel with single button descent operation, emergency stop and main power switch |
| Installation | Surface mount or recessed configuration |
| Platform Width & Length | 710m x 6300mm |
| Lifting Height | 1660mm |
| Max Height, Length & Width | 2465mm x 7150mm x 3735mm |
| Max Lifting Capacity | 12 Tonne |
| Lock Release Mechanism | Electric solenoids (no air required) |
| Air Outlets | Between Platforms (if fitted) |
| Optional Extras & Accessories | |
|---|---|
| Tool Support | Universal tool mounting bracket for the storage of air-tools and spanners etc. |
| Air supply Kit | Enables the use of air tools and fitment of air-operated Jacking Beam |
| Energy Kit | Provides for a mains power outlet on the post |
| LED Lighting Kit | Four 2m LED Strips for complete vehicle underside illumination |
| Jacking Beams | Compatible with our range of jacking beams up to 4 Tonnes (manual or pneumatic) |
| OEM Customisation | Our full range can be supplied to meet any specification and corporate colour scheme |
