Request callbackProduct code: B425T-800

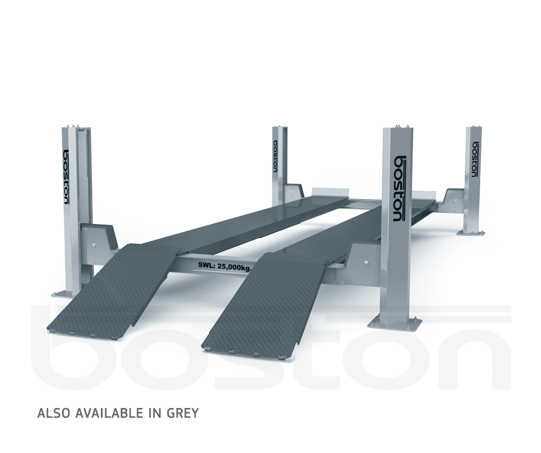

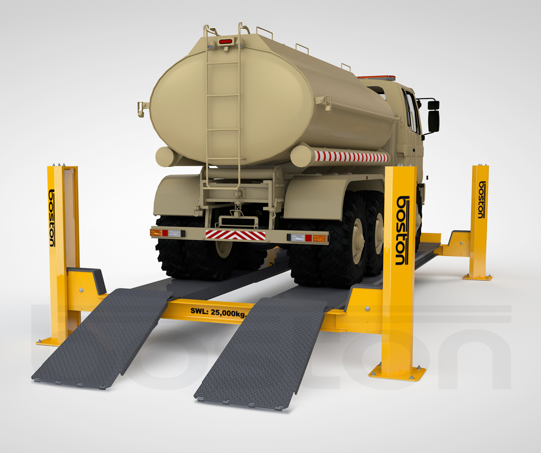

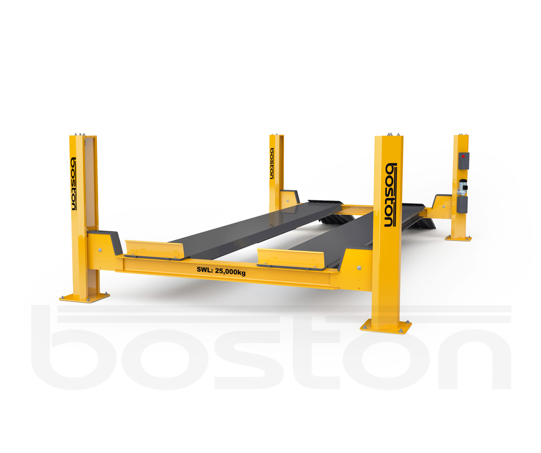

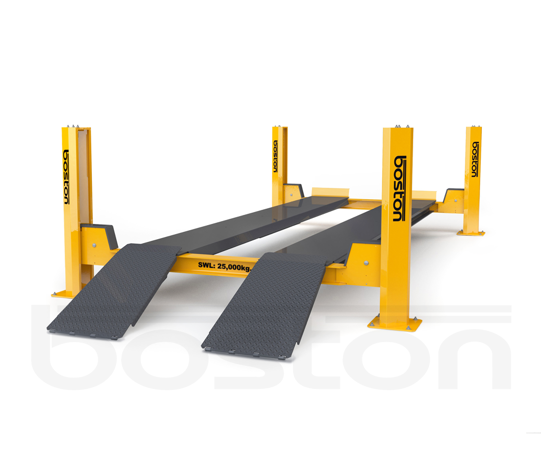

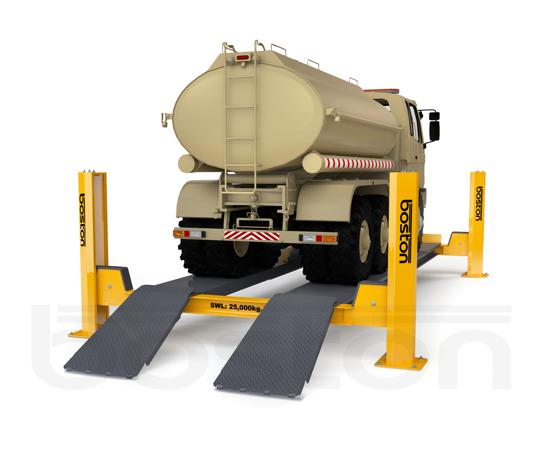

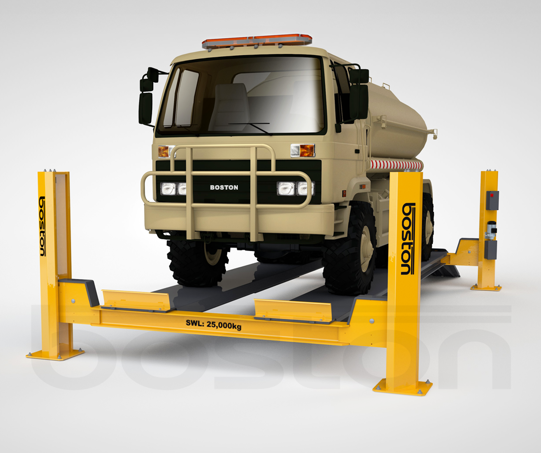

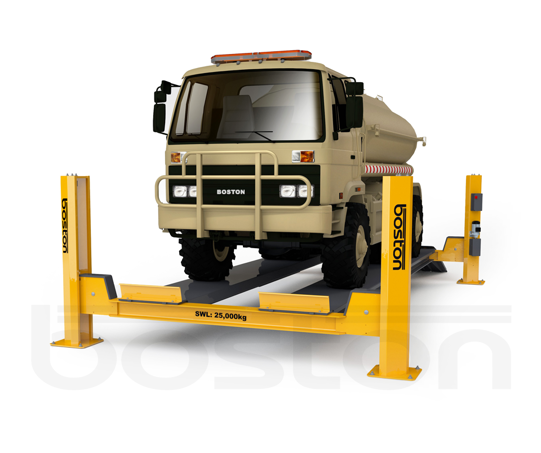

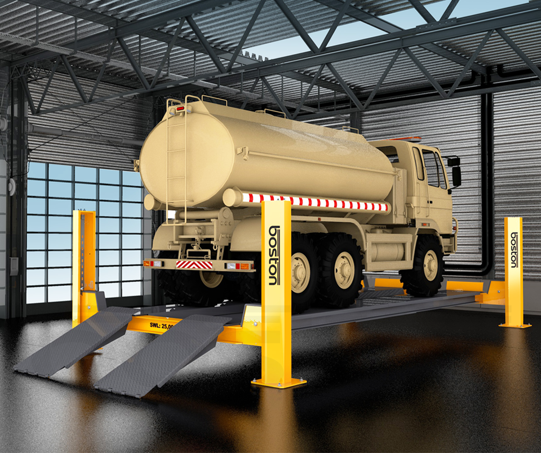

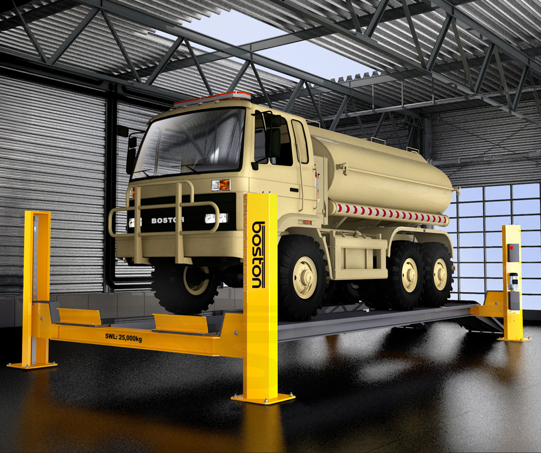

25T, 8m Commercial Vehicle Four Post Lift
25T, 8m Commercial Vehicle Four Post Lift
Introducing our new heavy duty commercial vehicle four-post lift, the B425T-800.
Engineered for the most demanding lifting requirements, this heavy-duty commercial vehicle (CV) lift is designed to handle a wide range of HGVs and large commercial vehicles, from commercial fleets to the military, and everything in between. Featuring robust 810mm wide platforms with an impressive 8000mm length, it delivers exceptional versatility and stability across various vehicle types.
Available with lifting capacities of 16T, 18T, 25T and 30T, this lift provides a secure and reliable platform for all types of maintenance and servicing tasks. Built for durability and performance, it is the ideal solution for professional commercial workshops and fleet maintenance facilities seeking a dependable and high-capacity lifting system.
- Reinforced drive-up ramps / drive-over plates
- Drive-through or reverse-off configurations
- Heavy duty, high quality platforms & reinforced substructure
- High quality safety ladder-racks on all posts
- Columns feature an innovative design with no longitudinal welds, enhancing structural integrity
- Cross beam pulley covers
- Equipped with a patented safety system that eliminates the need for an air supply; electro-hydraulic operation utilising cables, pulleys, and pins
- Quiet operation - no noisy spindles or gearboxes
- Electro-hydraulic lifting powered by a specially designed double-piston cylinder
- Safety system designed to detect and respond to cable breakage or the presence of obstacles
- 24V controls featuring "dead man" operation, separate up/down buttons and a lockable main switch
- Fully protected pulley areas to ensure operator safety
- Front and rear anti-slip safety features for vehicle positioning
- Built-in height limitation system
- Globally patented lifting and safety system, ensuring unparalleled reliability and innovation
- Range of optional extras (See Tech Specs)
Design
Boston products & software are designed in-house by our team of experts. All garage equipment is manufactured in the UK & Europe to the highest standards.
Expertise
With over 35 years of experience & more than 5,000 garages using our products, we have the knowledge & expertise to advise you on all your workshop needs.
Service
Network of approved distributors, authorised calibration technicians, GEA vehicle lift engineers, & product software with built-in remote assistance.
| Specifications: | |
|---|---|
| Power Supply | 3PH / 415VAC - 5.5kW |
| Operation | Electro-hydraulic |
| Control | Control panel with single button descent operation, emergency stop and main power switch |
| Installation | Surface mount or recessed configuration |
| Platform Width & Length | 810m x 8000mm |
| Lifting Height | 1540mm |
| Max Height, Length & Width | 2079mm x 9576mm x 4269mm |
| Max Lifting Capacity | 16 / 18 / 25 / 30 Tonne |
| Lock Release Mechanism | Electric solenoids (no air required) |
| Air Outlets | Between Platforms (if fitted) |
| Optional Extras & Accessories | |
|---|---|
| Tool Support | Universal tool mounting bracket for the storage of air-tools and spanners etc. |
| Air supply Kit | Enables the use of air tools and fitment of air-operated Jacking Beam |
| Energy Kit | Provides for a mains power outlet on the post |
| LED Lighting Kit | Four 2m LED Strips for complete vehicle underside illumination |
| Jacking Beams | Compatible with our range of jacking beams up to 4 Tonnes (manual or pneumatic) |
| Platform Extension Kit | Option to increase the platform length by an extra 12m |
| OEM Customisation | Our full range can be supplied to meet any specification and corporate colour scheme |
